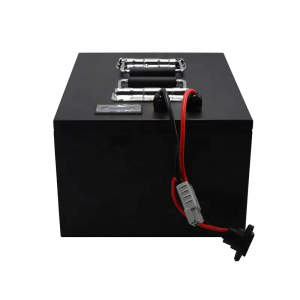

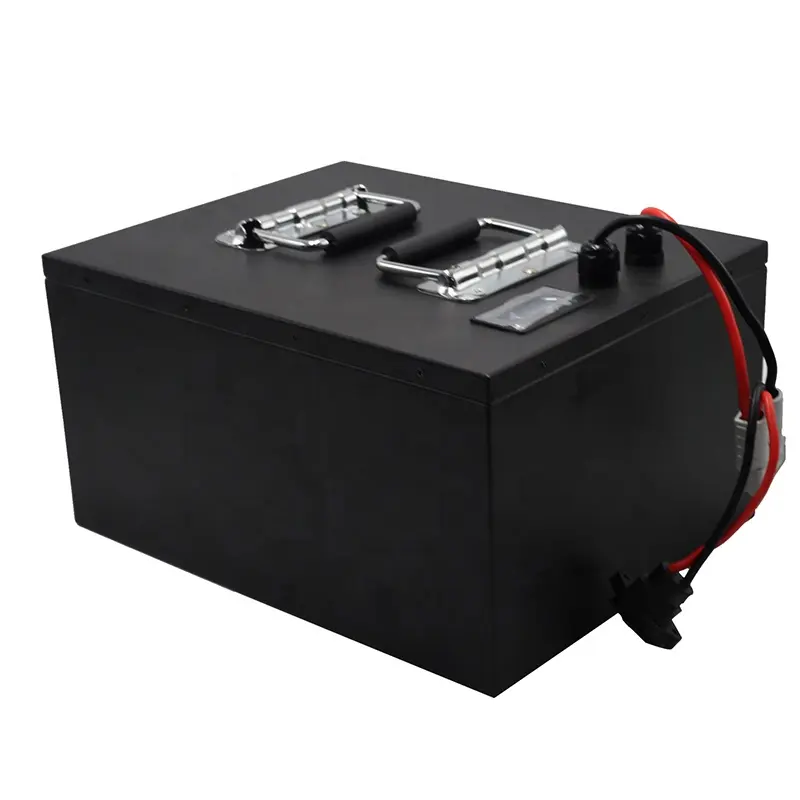

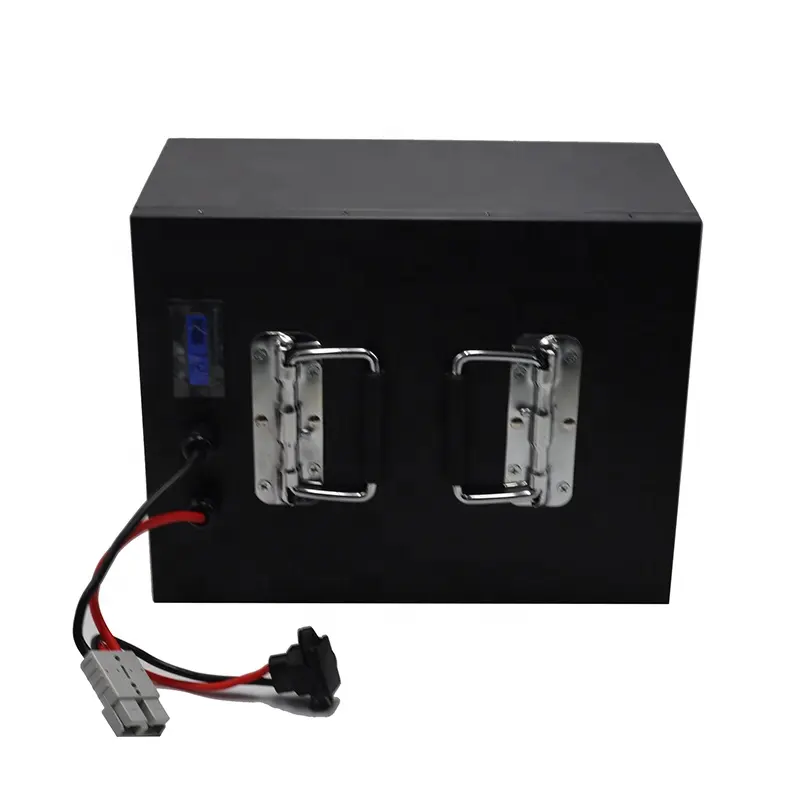

Персонализирана LiFePO4 батерия 72v 60ah литиево-йонна батерия за електрически превозни средства за EV автомобили

2023-06-06 02:13

спецификация

Име на маркатаВСИЧКО В ЕДНО
МоделAIN7260
Гаранция5 години
Номинално напрежение76,8V
Номинална капацитет[email protected]/customize
Енергия4416Wh
Вътрешно съпротивление≤50mΩ
Живот на цикъла4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Саморазряд≤3,5% на месец при 25 ℃
Максимално напрежение на зареждане87.6 V
Режим на зарежданеAt 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Заряден ток30А
Максимален ток на зареждане60А
Разряден ток30А
Max. discharge Continuous Current60А
Максимален импулсен ток120A(<3S)
Разреждане на прекъсващото напрежение60V
Температура на зареждане0 ℃ до 45 ℃ (32 ℉ до 113 ℉) @ 60 ± 25% Относителна влажност
Температура на разреждане-20 ℃ до 60 ℃ (-4 ℉ до 140 ℉) @ 60 ± 25% Относителна влажност
Температура на съхранение0 ℃ до 45 ℃ (32 ℉ до 113 ℉) @ 60 ± 25% Относителна влажност
Устойчивост на водна прахIP55
Клетка и форматLFP  60AH 24S1P/customize
КорпусMetal Case
Размери (L * W * H * TH)персонализирайте
тегло50kg
ТерминалM6 or Anderson or another bolt screw
Peak discharge current BMS60А
High temp port. Low temp port.over charge port. over discharge port.
Метод за таксуванеCC / CV
Terminal TypeM6 or Anderson or another bolt screw/customize
сертификатCE, RoHS ,MSDS and UN38.3 certification
applicationsGolf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric
Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

напомняне

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Приложение

Нашата фабрика

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

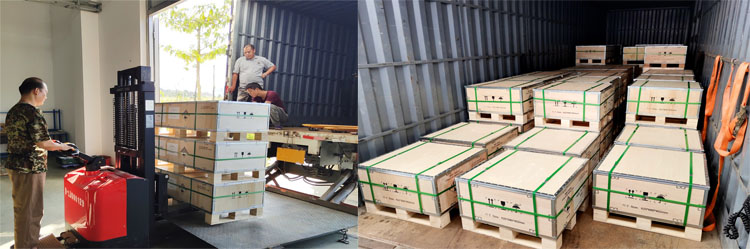

Опаковане и доставка

Опаковане

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Доставка

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



ЧЗВ

В: Как да платя? Какви начини на плащане приемате?
A: T/T, PayPal, Western Union.

Въпрос: Приемлива ли е поръчка на проба?
О: Да, за повечето батерии пробните поръчки за тестване на качеството са разумни и приемливи.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

В: Каква е вашата гаранция?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. За причинени повреди, като издуване на батерията/заварена, батерия без защита BMS, причинена от зареждане.

Забележка: Ние сме производител на батерии. Всички продукти не поддържат търговия на дребно, ние правим само B2B бизнес. Моля, свържете се с нас за цени на продуктите!
